What part of the engine gets the hottest?

• Typically the exhaust system or the catalytic converter surfaces are the hottest on a vehicle. ...
• Exhaust manifold temperatures vary for different vehicles and operating conditions. ...
• Catalytic converter temperatures also vary for different vehicles and operating conditions. ...
• Peak temperatures occur at road load, not idle.

What is the temperature of exhaust valve?

Most automotive exhaust valves operate in the temperature range of 650⁰C to 875⁰C. It is therefore proper care has to be taken in selecting the material for the valve operating at High thermal stresses (high temperature) and mechanical stresses. Exhaust valves may reach a maximum temperature of 800°C.

Are exhaust valves heated when open?

Both intake and exhaust valves get hot during operation. This heat must be dissipated and this heat is mainly conducted across the face of the valve, through the valve seat and into the cylinder head, where it is carried away by the flowing coolant.

What does a white exhaust valve mean?

You could easily tell the state of tune of the engine by the tailpipe color, which was the same as the valves but a whole lot easier to see : - Black = Too Rich. - White = Too Lean.

How Sodium Filled Exhaust Valves Work - Kia Stinger GT - Best Engines

Why do exhaust valves close after TDC?

The exhaust valve closes after a few degrees of piston reaching the TDC, i.e. when the piston starts to move down the cylinder in the suction stroke. At this point, both the inlet & exhaust valves remain open for a very short period of time; causing an 'overlap'.

What are the parts of exhaust valve?

The valve is raised from its seat by the action of a rotating cam that pushes on the bottom of the shank, permitting gas flow between region A, which leads to the intake or exhaust pipes, and region B, which leads to the cylinder.

How does an exhaust valve work?

Quick exhaust valves operate by increasing the speed of the pneumatic cylinder's rod in order to expel the exhaust air at the port of the cylinder directly. One quick exhaust valve is used in each port of the cylinder to ensure an increase in the speed of the rod in both directions.

What happens to the exhaust valve during exhaust stroke?

4. Exhaust stroke: during the exhaust stroke, the inlet valve remains closed whilst the exhaust valve opens. The moving piston pushes the burned fumes through the now open exhaust port and another intake stroke starts again. During one cycle, the piston makes two round trips and the crankshaft revolves twice.

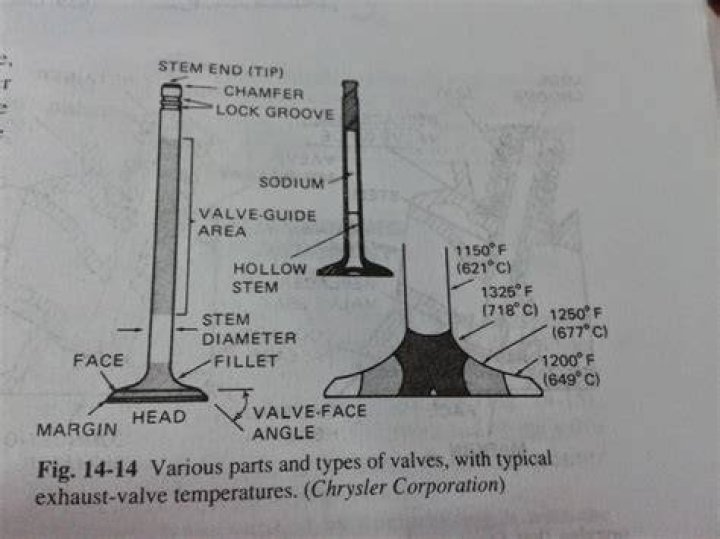

Is the valve stem the hottest part of the valve?

Usually the center of the valve head is the hottest place on the valve.

Why is the exhaust valve more susceptible to failure than the intake valve?

Exhaust valves are the ones most likely to burn because they run hotter than the intakes. The intake valves are cooled by the incoming air and fuel, and consequently operate at about 800 degrees F.

What is a motorcycle exhaust valve?

This is a simple butterfly valve that can open or close to change the amount of exhaust flow. Connected to this valve is a set of cables that run to the other part of the system, the servo motor.

What temperature do exhaust headers reach?

In short, the highest temperatures that an exhaust manifold or exhaust pipe should ever reach would be approximately 850°C (1,600°F). As a guide, metals will start to turn red at 500°C and be a dark cherry red at around 635°C (1,175°F).

How hot does the surface of an engine block get?

The engine block surface temperature and exhaust heaters are kept at about 100 and 600 degrees C, respectively.

How hot does an exhaust flex pipe get?

The average temperature of an exhaust pipe is between 400 and 500 degrees. Depending on how long you are driving. The temperature can be as low as 300 degrees or as high as 1000 degrees. The heat from the engine is removed by the exhaust system and muffler.

Why do exhaust valves have two springs?

the reason for fitting two springs are that if one spring fails the valve will be held up by the other spring and prevent the valve from dropping down in the cylinder. The spring may be vibrate axially and surge, When there is a frequency due to natural vibration of spring is in harmonic with cam shaft speed.

How opening of exhaust valve is controlled?

The opening and closing of the valve is controlled hydraulically by a cam mounted on the camshaft. Lube Oil (from the engine LO system) displaced by the hydraulic pump operates a piston in the exhaust valve which pushes the valve open.

What is air spring in exhaust valve?

(b) Air Spring: A piston is fitted to the valve stem below the hydraulic cylinder and this piston reciprocates in a cylinder compressing the air in the cylinder when the valve opens. This compressed air acts on the piston to close the valve when the upcoming hydraulic force is removed.

Which is intake and which is exhaust valve?

Intake valves let air in, whereas exhaust valves let air out. They are shaped to have a slim stem leading to a flatter face, with the intake valves often being larger than the exhaust. Each valve is designed to only move up and down, not side to side.

Which valve is bigger inlet or exhaust?

Hence the inlet valves have larger diameter in respect to that of exhaust valve. After completion of the expansion process inside the combustion chamber the pressure is very high than the atmospheric pressure .

Why is there a difference in temperature between the intake and exhaust valves?

Why is there a difference in temperature between intake and exhaust? The incoming air-fuel mixture tends to cool the intake valve during operation. The exhaust valve is cooled mainly by what? Air-fuel circulation.

Are both valves closed at TDC?

The piston is at top dead center, intake and exhaust valves are both closed and the spark plug has just fired. The expansion of the ignited fuel/air mixture forces the piston down. Before the piston reaches bottom dead center, the exhaust valve starts to open.

Why does exhaust valve opens before BDC?

The gases inside the cylinder posses a higher pressure even after the expansion stroke. ... Thus the exhaust valve is made to open before the piston reaches the BDC thus enabling the gases to escape outside on its own and the remaining gases are pushed out by the upward motion of the piston.

When should the exhaust valve open?

On the power stroke, the combustion pushes the piston down in the cylinder. During this stroke, it is necessary to open the exhaust valve before the piston gets to the bottom of the cylinder. This will allow the excess pressure in the cylinder to "vent out" just before the piston reaches the bottom of the stroke.
