What is M40 concrete mix ratio?
David Ramirez water-to-cement ratio
Water–cement ratios of 0.40 to 0.60 are more typically used. For higher-strength concrete, lower ratios are used, along with a plasticizer to increase flowability. Too much water will result in segregation of the sand and aggregate components from the cement paste.
› wiki › Water–cement_ratio
Is method of mix design for M40 grade concrete?
Mix proportioning for a concrete of M40 grade is given in A·I to A-ll. s = standard deviation. From Table I of IS 10262:2009, Standard Deviation, s = 5 N/mm2. Therefore, target strength = 40 + 1.65 x 5 = 48.25 N/mm2.
Where is M40 concrete used?
Use of M 40 Grade of Concrete: M40 grade of concrete is used in Pre-stressed concrete. It is used in RCC slabs, beams, columns, footings, etc.
How many bags of cement are in a M40?
Weight of 1 bag cement = 50 kg. =0.0347 cum. = 6.25 bags.
What is M20 M30 M40 concrete?
The M describes the Mix design of concrete while the strength digits in N/mm2. Therefore concrete is known for its compressive strength. There are different Grades of concrete such as M10 M15 M20 M25 M30 etc the usage of right concrete grades depends on advice given by the Structural engineer.
M40 grade of concrete | Design mix proportion of concrete | Volume batching
What is the slump value of M40 grade concrete?
Slump value for M30 to M40 can be taken as a minimum of 50 and a maximum of 100. Slump value for M40 to Above can be taken as a minimum of 75 and a maximum of 150.
What are the 5 types of concrete?
The Types of Concrete
- Normal Strength Concrete. This concrete combines all the basic ingredients — concrete, sand and aggregate — using the 1:2:4 ratio. ...
- Plain or Ordinary Concrete. ...
- Reinforced Concrete. ...
- Prestressed Concrete. ...
- Precast Concrete. ...
- Lightweight Concrete. ...
- High-Density Concrete. ...
- Air-Entrained Concrete.
What is M30 concrete mix design?
Mix proportioning for a concrete of M30 grade is given in A·I to A-ll. s = standard deviation. From Table I of IS 10262:2009, Standard Deviation, s = 5 N/mm2. Therefore, target strength = 30 + 1.65 x 5 = 38.25 N/mm2.
How do you calculate a mix ratio?
Divide 1 by the total number of parts (water + solution). For example, if your mix ratio is 8:1 or 8 parts water to 1 part solution, there are (8 + 1) or 9 parts. The mixing percentage is 11.1% (1 divided by 9). Need another example?
How do you calculate mix design?
Estimation of Concrete Mix Calculations
- Volume of concrete = 1 m3.
- Volume of cement = (Mass of cement / Specific gravity of cement) x (1/100) = (394/3.15) x (1/1000) = 0.125 m3.
- Volume of water = (Mass of water / Specific gravity of water) x (1/1000) = (197/1) x (1/1000) = 0.197 m3.

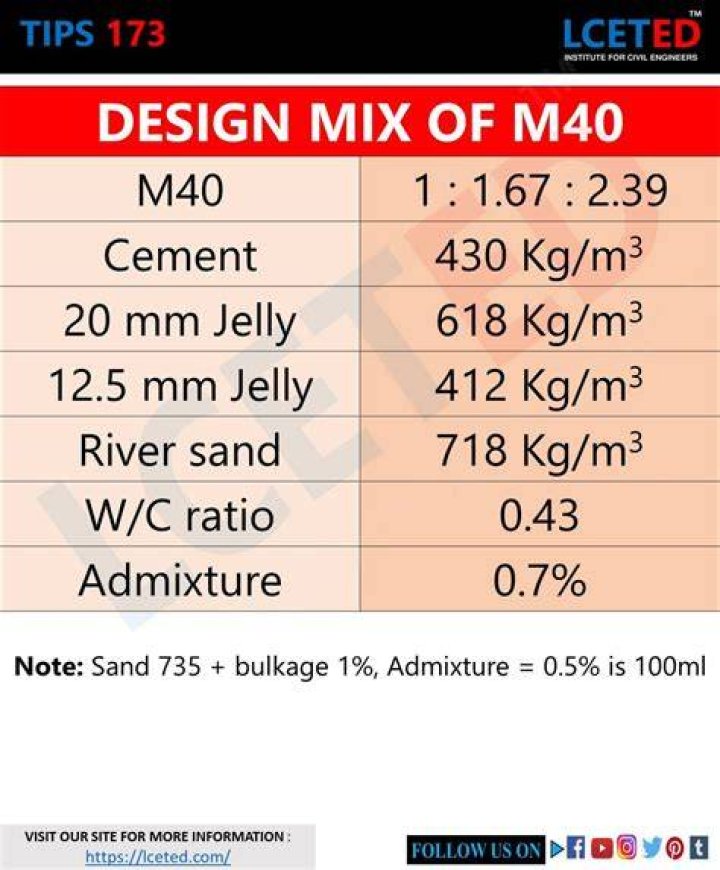

How is M40 mix design calculated?
Actual site conditions vary and thus this should be adjusted as per the location and other factors.
- Parameters for mix design M40. Grade Designation = M-40. ...
- Mix Calculation: – Target Mean Strength = 40 + (5 X 1.65) = 48.25 Mpa. ...
- Considering 20 mm : 10mm = 0.6 : 0.4. ...
- Water: cement: F.A.: C.A. = 0.4: 1: 1.65: 2.92.
What is the PCC ratio?
Ration of materials in PCC: The ratio of cement, sand and brick chips in foundation or basement should be 1:3:6. But, if it is applied in the car parking area, the ratio will be changed to 1:2:4.
What is M25 concrete mix?
M25 grade concrete ratio is 1:1:2 mixture of cement, fine aggregates and course aggregate in which one part is cement, one part is sand and two part is aggregate. The degree of preparation of the concrete is selected based on the m25 grade concrete mix design.
How strong is 40 MPa concrete?
40 MPa concrete strength at 28 days:- strength of 40 mpa concrete at 28 days of curing is about 40 mpa which is approximately equal as 99% of total compressive strength when tested with 15cm dia and 30cm length of cylinder.
What is the strongest concrete mix?
C40 concrete is the strongest and most durable mix and for good reason townhomes for sale san diego. It can handle almost any abuse, including withstanding corrosion, making it ideal for farm-based and laboratory environments.
What concrete is the strongest?
Ultra-High Performance Concrete (UHPC) is a cementitious, concrete material that has a minimum specified compressive strength of 17,000 pounds per square inch (120 MPa) with specified durability, tensile ductility and toughness requirements; fibers are generally included in the mixture to achieve specified requirements ...
What is the slump of m40?
25–50 mm for pavement.
How is Slump value calculated?
In case of a shear slump, the slump value is measured as the difference in height between the height of the mould and the average value of the subsidence.
What is the workability of the concrete with a slump of 40 mm?
Very dry mixes having slump 0 – 25 mm are typically used in constructing pavements or roads, low workability mixes having slump 10 – 40 mm are typically used for foundations with light reinforcement, medium workability mixes with slump 50 – 90 mm, are typically used for normal reinforced concrete placed with vibration, ...
Where is m5 concrete used?
M45 and M50 grades are used for RCC, Runways, Concrete Roads( POQ ) Prestressed concrete girders, RCC columns, Prestressed beams etc. M-55 grade is used for Pre-stressed concrete girders and piers etc.
What is C20 concrete used for?
GRADE: C20 CONCRETE
Concrete at this strength is often applied on domestic floors and foundations where the weight of overall structures on the concrete will be lighter. C20 is ideal for domestic workshop and garage bases as well as driveways and internal floor slabs.
Which is better M20 or M25?
The behavior of M25 concrete is stiffer than M20. It can take more loads. The deflection is less as compared to M20 concrete as shown in fig.
What is the best mix ratio for concrete?
The safest bet for any concrete mix is four-two-one: four parts crushed rock; two parts sand; and one part cement. The four-two-one mix, obviously, has seven parts. Conveniently, when mixing concrete, the ratio can be mixed on any range of scales.
