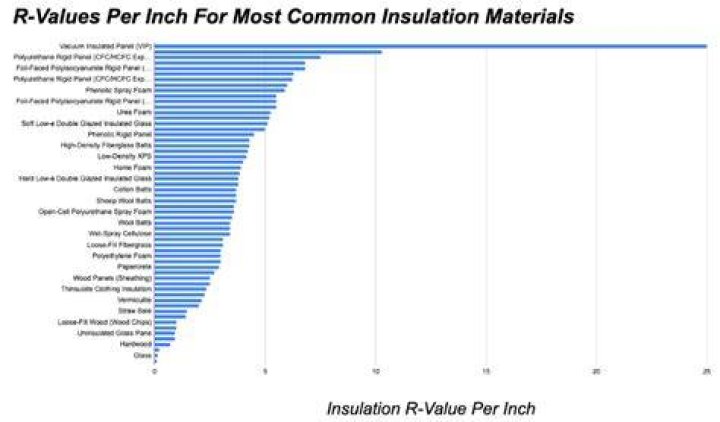

What insulation has highest R-value per inch?

Vacuum insulated panels have the highest R-value, approximately R-45 (in U.S. units) per inch; aerogel has the next highest R-value (about R-10 to R-30 per inch), followed by polyurethane (PUR) and phenolic foam insulations with R-7 per inch.

What is the highest R-value insulation you can buy?

Insulation R-Value Chart

• Closed Cell Spray Foam: R-6 to R-7.
• Foam Board: R-4.5 to R-5.
• Open Cell Spray Foam: R-3.6 to R-3.9.
• Cellulose (Loose-Fill): R-3.1 to R-3.8.
• Fiberglass (Batts): R-2.9 to R3.8.
• Fiberglass (Loose-Fill): R-2.2 to R-2.9.

What is the thinnest insulation with highest R-value?

Aerogel insulation offers the highest R-value of any insulating material at less weight and thickness—ideal for construction, refineries, pipelines, and thin-gap thermal barriers.

Is r40 insulation good?

It is a rigid material that helps reject lots of water, adds wall racking strength as well as impact resistance. Closed-cell foam has a higher R-Value than any insulation, it ranges from 5.0 to 7.0 per inch. Regarding the thickness of the spray foam insulation, it depends on certain factors.

Busting R-value insulation MYTHS

What is the R-value of Styrofoam?

Resistance to the flow of heat is measured in "R-value", the higher the R-value, the harder it is for heat to get through. STYROFOAM extruded polystyrene insulation is rated at an R-value of 5.0 per inch at 75°F.

What is the R-value of 1 inch spray foam?

This microscopic difference in the two products creates a dramatic difference in performance. Closed cell spray foam has an R-value of R-7 per inch. In comparison, open cell spray foam has an R-value of R-3.8 per inch. Additionally, the materials have decidedly different densities.

What is the R-value of 2 inch blue foam?

A wall utilizing STYROFOAM T-MASS Technology with a 2-inch exterior layer and a 4-inch interior layer of concrete along with a 2-inch layer of STYROFOAM extruded polystyrene insulation would result in a material R-value of approximately 11.33.

What is the R-value of aerogel per inch?

Aerogel has an R-value of about R-10 per inch, is 99% air and insulates up to 37 times higher R-value than fiberglass. The material is costly, and fragile, factors that have limited its use in residential construction.

What is r8 insulation used for?

EcoFoil R-8 HVAC Duct Wrap Insulation is specifically designed to reduce radiant heat gain/loss in residential and commercial duct applications. The insulation also helps control condensation by providing an airtight thermal break around the HVAC ducting.

Which insulation is most effective?

Overall, if you are looking for the best long-term solution, foam insulation products will create the air seal in your home that will make it more comfortable while saving you money on your monthly energy bills. Foam insulation doesn't settle or sag and it fills all the nooks and crannies where it is installed.

What is the highest R-value for 6 inch batt insulation?

Fiberglass Insulation Batts

Fiberglass blankets or rolls provide an R-value of up to 3.2 per inch, so a 6-inch fiberglass batt may achieve an R-value of 19.2, and some high-performance products are rated at R-21.

What is the highest R-value for a 2x6 wall?

Thermal Control

The installed insulation R-value for 2x6 fiberglass batt ranges between R-19 and R-21. When blown or sprayed cellulose insulation is used, the R-value is typically R-20 for 2x6 walls.

What is the R-value of Rockwool?

While fiberglass insulation is capable of offering an R-value of about 2.2 to 2.7 per inch of insulation, Rockwool has an R-value between 3.0 to 3.3 per inch of insulation.

What is the R-value of wood?

The R-Value of Wood

The R-value for wood ranges between 1.41 per inch (2.54 cm) for most softwoods and 0.71 for most hardwoods.

Which is better spray foam or fiberglass insulation?

Spray foam insulation has a higher R-value than fiberglass, making it a better insulator. Another difference between them is that spray foam is watertight while fiberglass cracks under moisture. However, installing spray foam requires a professional while fiberglass is easy to install yourself.

Which is better closed or open cell foam insulation?

Closed cell foam has a higher R-value than open cell foam, usually about 6.0 per inch. But some closed cell foams, like Tiger Foam's E84 Closed Cell formula, have even higher ratings that go up to almost 7 per inch. This higher rating makes closed cell foam better at keeping heat in or out of a structure.

What is the R-value of aluminum foil?

According to ASHRAE, when just a little condensation is visible on aluminum foil, the emissivity can reach 0.2 to 0.3, which would decrease that R-value down to R-3.86.

What is the R-value of 2 inch white Styrofoam?

With an R-value of 13.1 for a 2" thick sheet only two 2" sheets are required to achieve R-25. 2. Extruded polystyrene or XPS (foam is usually pink or blue) XPS has an R-value of 5 per inch of thickness requiring 5" of insulation to achieve R-25.
