What will happen if transformer fails?

One failure can cause many problems. A simple fault at the distributing end can cause black-out of power to the whole area. The fault can also be very dangerous as the transformers contain large quantity of oil in direct contact with high voltage components.

What are the possible causes of failure of transformer?

Cause of Failure

• Misapplication.
• Vibration.
• High Operating Temperature.
• Lightning or Line Surges.
• Overloading.
• Care of Control Equipment.
• Lack of Cleanliness.
• Care of Idle or Spare Equipment.

How do you know if a transformer blew?

Often, this overheating will cause the transformer to “blow,” and you might hear a loud boom and see smoke or a flash of light.

What happens before a transformer blows?

When damage occurs in a transformer, two things may occur. The first is an overload in the supply of electricity flowing into the transformer. And the second is the overheating of insulation fluid (mineral oil) past its flash point or fire point.

5 POWERFUL Transformer Failures Videos (What Went Wrong?)

What does a blown transformer sound like?

When a transformer fails, it will usually result in a loud boom, a power outage, and a fireball that creates a large plume of smoke.

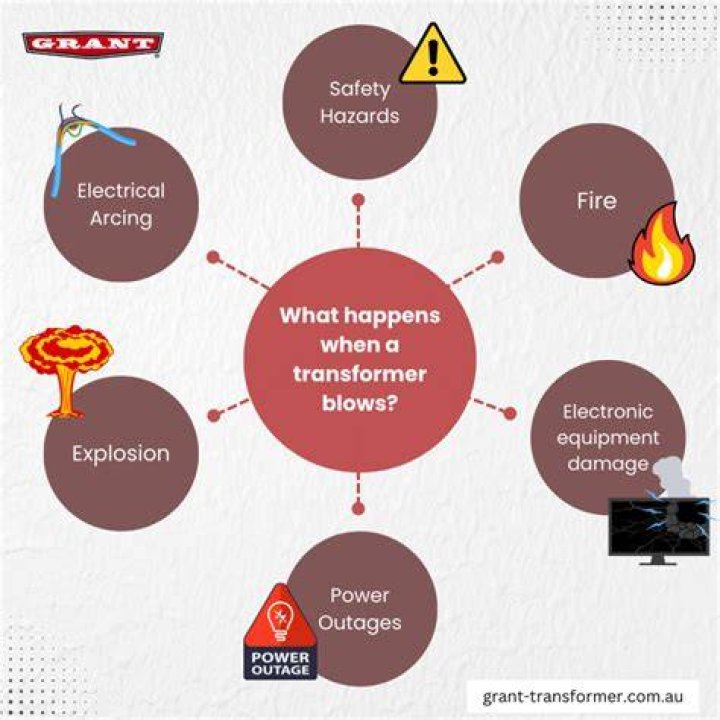

What happens when a transformer burst?

When a transformer blows, it interrupts electrical service to any residences or businesses connected to the transformer. Electric service crews must replace the destroyed hardware, first shutting down the incoming electrical line to prevent damage and injury.

How often do transformers explode?

Manhattan houses 35,000 underground and 47,000 overhead transformers for its 10 million residents, and of those 82,000, about 35 fail every year, McGee says. A failure doesn't always equate to a fire or explosion either; in fact, in the steadily decreasing number of failures per year, such an explosion is rare.

Who do you call when a transformer blows?

Transformers and any downed power lines can be extremely dangerous. After you verify the blown transformer's location, call your power company right away.

What are the common faults in a transformer?

7 most common transformer faults and issues

• Overheating fault.
• Earth Faults.
• Interturnes faults.
• Tank Faults (oil level)
• Phase to phase Faults.
• Open Circuit faults:
• Another one of common transformer faults is Bushings flashover.

How long should a transformer last?

In the U.S. alone, analysts say the average age of a transformer on the grid is 35 years old, near the end of its typical lifecycle. Under ideal conditions, transformers are expected to operate for 30 to 40 years, while industrial transformers have a life expectancy of just 20 to 25 years.

What happens if transformer is overloaded?

The weakening of the system will happen faster if the transformer is frequently overloaded. The net result of small, incremental increases in loading capacity over time is a weakened insulation system. Overloading causes overheating, and eventually thermal degradation that acts thrrough cracks in the insulation.

Can a bad transformer cause a fire?

An exothermic reaction due to a faulty wire or overload that causes significant surge in temperature, resulting in sparks that may cause the transformer to catch fire and explode.

What causes a transformer to trip?

Transformers are prone to nuisance tripping as a result of design flaws, operational conditions, improper relay settings, or otherwise. Transformers are a major component of substations and many times it is not affordable to have accidental outages, especially for bulk substations that serve large areas.

How long does it take to repair transformer?

A distribution transformer can take one hour to a few hours to replace; but widespread damage can take much longer to repair.

Why do transformers make noise?

The alternation current that flows through an electrical transformer's coils has a magnetic effect on its iron core. It causes the core to expand and contract, resulting in a humming sound.

Can a blown transformer cause a power surge?

A downed power line, for instance, or a blown transformer can lead to power surges, as can increased demands for electrical power during the summer and winter. And then there's the risk associated with lightning storms.

Why do transformers burst during rain?

The high voltage lines which supply power to the transformers from power stations, create a lot of heat. So much so that even the oil within the transformer is heated, he explains. “When there is lightning or a spell of heavy rain, the wires come in contact with each other, causing the blast.”

What happens when lightning strikes a transformer?

A lightning strike on a transformer can cause a major explosion due to the amount of extra voltage injected into the transformer. Lightning bolts can contain up to 120 million volts – depending on the length and size. When a transformer blows, it can knock out power for hundreds to thousands of people.

How can you prevent a transformer from exploding?

Mitigating the effects of a transformer explosion consists in either limiting the explosion consequences by extinguishing the subsequent fire (fire walls or sprinklers) or preventing tank explosion by using mechanical technologies that absorb the high overpressures generated by the electrical arc, thus preventing the ...

How do you fight a transformer fire?

The extinguishing agent is fine spray of water (water mist of fogging). The blanketing or smothering effect keeps the oxygen away from the fuel. Class C – Fires in electrical equipment. The extinguishing agent must be non-conducting (powder, carbon dioxide, vaporizing liquid (foams or water sprays at safe distance).

Why would a transformer catch fire?

Transformers can explode and burn when the internal temperature exceeds the flash point of the insulating fluid (usually mineral oil). Most transformers use mineral oil, and it has a flash point of 195 degrees C (or 380 F).

How do you test a transformer?

To test your transformer, simply touch the red and black pins of your ohmmeter to the opposite ends of the transformer's wiring. Read the display and compare the resistance on your ohmmeter to the resistance stated on the transformer's data sheet. This is sometimes listed on the transformer's enclosure.
