How is an arch created?
Matthew Barrera Why are arches constructed?
In architecture, an arch is an opening in a structure that is curved on top and designed to distribute weight. Arches are used in structural engineering (a branch of civil engineering that deals with large buildings and similar structures) because they can support a very large mass placed on top of them.
How did Romans construct arches?
The ancient Romans created an arch that could support huge amounts of weight. How did the Romans accomplish this? The answer lies with a material called concrete. Using a mixture that included lime and volcanic sand, the Romans created a very strong and durable type of concrete.
How does an arch work structurally?
An arch derives its strength directly from its shape. Downward force from the top of an arch is carried along the curving form all the way to the base. At the same time, the ground pushes up with equal force.
Did the Romans create the arch?
The Roman arch was the foundation of Rome's architectural mastery and massive expanse of building projects across the ancient world. It allowed the Romans to make bigger buildings, longer roads, and better aqueducts. The Roman arch is the ancestor of modern architecture.
How Arches Formed? "Geology of Arches"
Why is an arch so strong?
An arch bridge is stronger than a beam bridge, simply because the beam has a weak point in the center where there is no vertical support while arches press the weight outward toward the support.
How do arches stay up?
They are self-supporting, stabilised by the force of gravity acting on their weight to hold them in compression. This makes them very stable and efficient, capable of larger spans, and supporting greater loads than horizontal beams. The downward load of an arch must be transferred to its foundations.
How an arch bridge is built?
Arches are normally fabricated on-site. After the building of abutments (and piers, if the bridge is multiarch), a falsework is constructed. For a concrete arch, metal or wooden falsework and forms hold the cast concrete and are later removed.
How did Romans build arch bridges?
The first stone bridges used stone blocks held together with iron clamps. By the mid-2nd century BCE, Romans made extensive use of concrete: bridges were often constructed with a concrete core and a stone-block facing. The use of concrete significantly increased the bridges' strength and durability.
Who created the first arch?
Arches appeared as early as the 2nd millennium BC in Mesopotamian brick architecture, and their systematic use started with the ancient Romans, who were the first to apply the technique to a wide range of structures.
How much weight can an arch support?
The more common concrete masonry arch is the minor arch where maximum span is limited to about 6 feet (1.8 m) with a rise-to-span ratio not exceeding 0.15, and carrying loads up to 1500 lb per foot of span (21,891 N/m).
How do you make a flat arch?
In flat arches, bricks shall be laid with radial joints to the full depth of arch and voussoirs breaking joints with each other. The arch work shall be carried up from both ends simultaneously and keyed in the center. The thickness of the mortar joints shall not exceed 5 mm.
Are arches load bearing?
In modern masonry construction, arches in load bearing masonry are not as common as arches in veneers. However, the basic principles are similar. Arches with little rise are typically constructed with bond beam or other structural units that can be reinforced as needed (technically, these are also lintels).

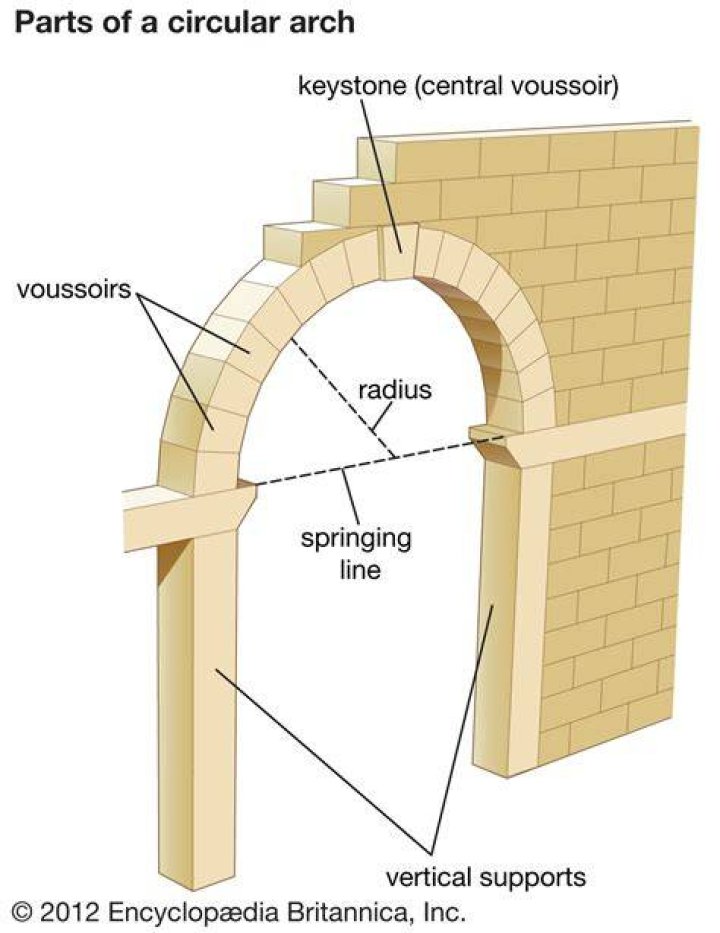

What are the components of an arch?
- ABUTMENT OR PIER: It belongs to the portion of wall or pier upon which the arch is supported. ...
- ARCH RING: It is a series of stones or bricks which contain a curve same as that of the arch.
- INTRADOS OR SOFFIT: ...
- EXTRADOS: ...
- VOUSSOIRS OR ARCH BLOCK: ...
- SPRINGING STONE OR SPRINGER: ...
- SPRINGING LINE: ...
- CROWN:
How are stone arches constructed?
To build an arch, you start with two low wall sections of equal height on either side of a gap that's the planned width of the arch. Then, use a wooden form, a half-circle cut in the desired curve of the final arch, as a support. Beginning at the wall edges, build up along the sides with wedge-shaped stones.
Why are bridges arched shaped?
The arch allows the load to spread out instead of pushing straight down. The load spreads out to the abutments, which are supports on the ground at both ends, which keeps the ends of the arch bridge from breaking apart. The curved design and abutments allow the entire bridge to carry the load.
How are arch bridges attached?
Tips of the arch of this bridge are tied together by a bottom chord. This allows the bridge to be constructed with less robust foundations because force on the abutments is low. Tied-arch bridges can be built on elevated piers or in areas of unstable soil.
How do I strengthen my arch shape?
As you're working through these exercises, focus on raising, strengthening, and lengthening your arches.
- Heel stretches. Stand with your hands resting on a wall, chair, or railing at shoulder or eye level. ...
- Tennis/golf ball rolls. ...
- Arch lifts. ...
- Calf raises. ...
- Stair arch raises. ...
- Towel curls. ...
- Toe raises.
When was the first arch built?
The arch was used as early as the 2nd millennium BC, but it was the ever precocious Romans who began the systematic use of the arch, in their greatest engineering feats and as a means of celebrating their greatest military victories.
Why is the arch so important?
The arch is one of the single most important architectural discoveries in human history, and we have the Romans to thank for it. The Roman Arch was the foundation of Rome's architectural mastery and massive expanse of building projects across the ancient world.
