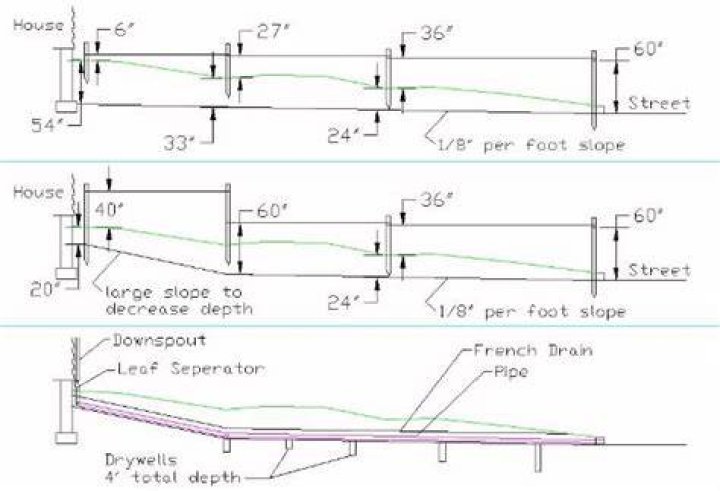

How do you find the slope of a drain pipe?

Multiply the length of the pipe (x) by the inches needed to slope the line (y) This equals height difference (z) between the beginning and end of the pipe (x) ⋅ (y)=(z) Example: If your pipe is 10 feet, and it needs to slope ½ an inch per foot, the equation would be 10 ⋅ ½ = 5 inches.

What is the minimum slope for a drain pipe?

It is generally accepted that 1/4″ per foot of pipe run is the minimum for proper pitch on a sewer line. Larger lines such as 8″ pipe actually require less pitch due to the larger circumference of the pipe.

How do you calculate the fall of a drain?

Drainage Gradients Falls

1. FALL = GRADIENT X DISTANCE. ...
2. Invert Levels. ...
3. The level at the crown of the pipe = the invert level + internal diameter of the pipe + pipe wall thickness. ...
4. Manholes can be manufactured from masonry or precast concrete.

How do you calculate slope?

To calculate percent slope, divide the difference between the elevations of two points by the distance between them, then multiply the quotient by 100. The difference in elevation between points is called the rise. The distance between the points is called the run. Thus, percent slope equals (rise / run) x 100.

The Proper Slope For Drain Pipe-Plumbing Basics

How do you slope a PVC drain pipe?

For 4-inch PVC piping and a building sewer less than 50 feet long, the minimum slope is 1 inch in 8 feet, or 1/8-inch per foot, and the maximum is 1/4-inch per foot. For sewers longer than 50 feet, the slope should be 1/4-inch per foot.

What is the maximum slope on a drain pipe?

The maximum slope for efficient drainage is usually a drop of 1/2 inch per 1 foot of horizontal distance. A pipe with a very extreme slope of 45 degrees or more is considered vertical. Vertical pipes, or stacks, drain solids and liquids effectively.

What is a 1% slope for drainage?

All of your drain pipe (with one exception) must slope slightly downhill. Usually 1/8" per foot is plenty for drainage, this is the same as the commonly recommended 1% slope.

What fall should a waste pipe have?

What is the recommended fall for a soil pipe? The minimum fall for a waste pipe is 1 in 40. The maximum fall is 1 in 110 (apart from vertical pipes but that's a different story). So pipes with a gradient between 1 in 40 and 1 in 110 should have adequate flow to prevent blockages from occurring.

What is the fall of a 3 inch sewer pipe?

The plumbing code requires drain pipe to be sloped at a minimum of 1/2 inch per foot and a maximum of three inches per foot or vertical. A slope of less than a quarter-inch per foot will cause a lot of drain clogs and a slope of more than three inches will allow the water to drain.

How do you calculate a 1 in 60 fall?

Example 1:

A gradient of 1:60 means that there will be 1 unit of fall for every 60 units of patio width. The patio is to be 4.2m wide, so if that distance (the run) is divided by 60, the result is the 1 unit of fall. We'll work in millimetres rather than metres... So, there needs to be 70mm of fall across the patio.

What does a 1 in 40 fall mean?

A 1 in 40 pipe fall means that for every 40 units of length, the pipe will drop by 1 unit. For example, in a 40 metre run of pipe, the vertical drop of that pipe run will be 1 metre.

Can you put a 90 in a sewer line?

It's fine to have a larger-radius (sweep) 90-degree bend at the base of a vertical drainage stack where the wastewater starts to travel horizontally. It's also a good idea to have a sweep 90-degree fitting where a drain pipe pops out of a wall for a kitchen, vanity or laundry sink.

What are the 3 slope formulas?

There are three major forms of linear equations: point-slope form, standard form, and slope-intercept form.

How do you find the slope of a ramp calculator?

How do you calculate the slope of a ramp?

1. slope[ratio] = rise : run.
2. slope[angle] = arctan(rise/run)
3. slope[%] = 100% * rise/run = 100% * tan(angle)

How many inches per foot is a 1% slope?

1% as a decimal is 0.01 and hence the slope is 0.01. That means for a run of pipe of a certain length the rise must be 0.01 times the length. Thus for you example, since the length of the run is 80 feet which is 80 × 12 = 960 inches the rise must be 0.01 × 960 = 9.6 inches.

How do you calculate slope in feet?

Percent of slope is determined by dividing the amount of elevation change by the amount of horizontal distance covered (sometimes referred to as "the rise divided by the run"), and then multiplying the result by 100.

What is the formula for ramp?

Slope expressed as a percentage = (h/d) x 100

An existing ramp of 1 meter in height with a horizontal distance of 10 meters, will have a slope of 10%.

What does 1/14 mean for a ramp?

Landings or circulation spaces are provided at changes of direction, doors or gates. Maximum slope of a ramp that is longer than 1900mm is 1:14. Regularity of landings on ramps depends on the slope 1:14 (at least every 9m), 1:20 (at least every 15m).

How do you calculate ramp rise?

Measure total rise (how many inches from lower level to upper level) and divide by the slope.
