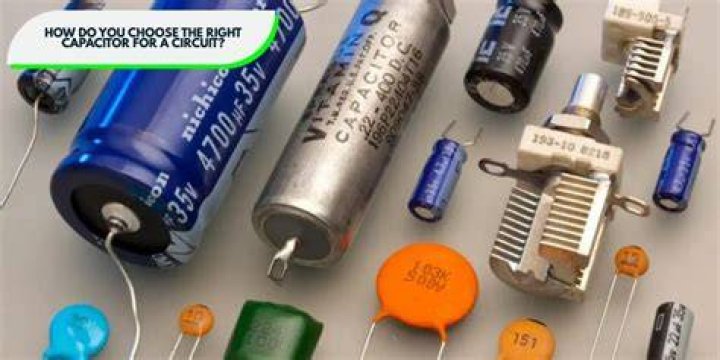

How do I know which capacitor to use?

The capacitor physical size is directly proportional to the voltage rating in most cases. For instance, in the sample circuit above, the maximum level of the voltage across the capacitor is the peak level of the 120Vrms that is around 170V (1.41 X 120V). So, the capacitor voltage rating should be 226.67V (170/0.75).

How do I choose a capacitor for my power supply?

Therefore, you should choose a capacitor with the smallest temperature coefficient if your product will operate over a broad temperature range. Polarization: Filter capacitors for DC circuits have some specified polarization, which states the direction the electric field should point across the capacitor.

What size capacitor should I use?

Q: What size capacitor should I get? A: The rule of thumb is to put in 1 Farad of capacitance for every 1,000 watts RMS of total system power. But there is no electronic penalty for using larger value caps, and in fact, many see benefits with 2 or 3 Farads per 1,000 watts RMS.

How do I know what capacitor I need for a circuit?

As the capacitor charges, the value of Vc increases and is given by Vc = q/C where q is the instantaneous charge on the plates. At this instant (time t) there will be a current I flowing in the circuit. We also know that Vs = Vc + Vr and Vc = q/C.

Capacitor calculations - Basic calculations for capacitors in series and parallel

Can I replace capacitor with lower UF?

There are two answers. It is possible if you have the necessary skills and tools. It is safe. If you put a higher voltage than the maximum you could see your cap explode, that's the only rating that matters for safety.

What do numbers on a capacitor mean?

Many capacitor manufacturers use a shorthand notation to indicate capacitance on small caps.\nIf you have a capacitor that has nothing other than a three-digit number printed on it, the third digit represents the number of zeros to add to the end of the first two digits. The resulting number is the capacitance in pF.

How do you match a capacitor to a motor?

Select a capacitor with a voltage rating at or above the original capacitor. If you're using a 370 volt capacitor, a 370 or 440 volt one will work. The 440 volt unit will actually last longer. A capacitor will have a marked voltage indicating the accpetable peak voltage, not operational voltage.

What happens if you use the wrong capacitor?

If the wrong run capacitor is installed, the motor will not have an even magnetic field. This will cause the rotor to hesitate at those spots that are uneven. This hesitation will cause the motor to become noisy, increase energy consumption, cause performance to drop, and cause the motor to overheat.

Is it OK to use a higher UF capacitor?

If the property of capacitance is used for power supply filtering, then it is generally fine to increase the value.

How do I choose a capacitor for a voltage regulator?

Choose ceramic capacitors with a voltage rating of at least 1.5 times the maximum-input voltage. If tantalum capacitors are selected, they should be chosen with a voltage rating of at least twice the maximum-input voltage.

Which capacitor is used for power supply?

Aluminum-electrolytic capacitors, such as the EPCOS B43504 or B43505–in voltage ratings from 40 to 450 Vdc and capacitance values from 220 to 150,000 µF–are typically used.

What does 50 UF mean on a capacitor?

The SI unit of a capacitor is Farad. One farad is a very large value for normal household capacitors. Therefore, household capacitors are marked in μF or UF (microfarad). U is a replacement for μ. 50 UF means 50 microfarads.

Does size of capacitor matter?

Generally no, the physical size of an electrolytic capacitor is not a factor as long as the capacitance and voltage ratings are the same. A possible exception is, if it's a switching power supply that uses low ESR capacitors, then the sizes might be different.

How do you determine the size of a capacitor for a motor?

Use our capacitance calculation formula. C_(µF) = 746 x 80 x 1000 / (220 x 220 x 50) = 24.66 µF. Hence 1 HP Motor required 24.66 µF capacitance to start the motor smoothly.

Does it matter which wire goes where on a capacitor?

A basic two terminal motor start or runCapacitor is not polarity sensitive. It does not matter which wire goes to which terminal.

What voltage capacitor do I need?

The voltage on a capacitor is not the rating, but rather how much voltage you can expose the capacitor to. For example, if your voltage source is 9 volts, you should choose a capacitor that is at least double the voltage, 18 volts or even 27 volts to be safe.

Is it OK to replace a capacitor with higher voltage rating?

The voltage rating is just an upper limit, which must never be exceeded in a functional circuit. Replacing a capacitor with something that has a higher voltage rating is always safe. The only problem there is that a capacitor rated for a higher voltage is often physically larger, everything else being equal.

What size capacitor do I need for a 1000 watt amp?

Capacitors come in different sizes typically starting with 1 Farad. The general rule is to add 1 Farad of capacitance for every 1000 watts RMS of system power. Note that it does not hurt to use more capacitance than this rule and many systems use 2 or 3 Farads per 1000 watts RMS.

What's the difference between a run capacitor and a start capacitor?

The start capacitor creates a current to voltage lag in the separate start windings of the motor. The current builds up slowly, and the armature has an opportunity to begin rotating with the field of current. A run capacitor uses the charge in the dielectric to boost the current which provides power to the motor.

What is the difference between MF and uF on capacitors?

The simple answer is they belong to the same measurement scale, i.e., mFD stands for “milli-Farad,” whereas µF stands for “micro-Farad.” There are mostly old capacitors manufacturing companies that are using mFD instead of µF capacitors.

Does the color of a capacitor matter?

Each color painted on the capacitors body represents a different number. The color codes used to represent the capacitance values and capacitance tolerance is similar to that used to represent resistance values and resistance tolerance.

What does 35 5 Mean on a capacitor?

SPECIFICATIONS FOR THE MAXRUN 35/5 MFD 370/440 VOLT CAPACITOR. This Capacitor is rated for 440 Volts which means it will work at 370 or 440 VAC. A dual run capacitor, such as this 35/5, combines two capacitors into one unit. It will power a compressor motor and a fan motor, and has three terminals on the top.
