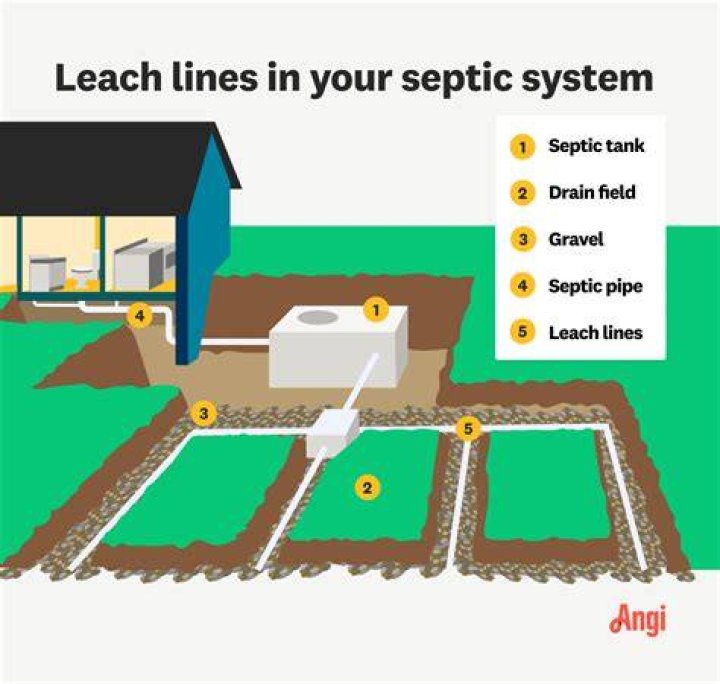

How deep do leach lines need to be?
David Ramirez Can a leach field be too deep?
Drain Field Depth
The result is a drain field about 3 to 4 feet deep. Sometimes, however, a drain field may need to be a bit shallower and can result in drain pipes as close to the surface as 6 inches. Underground obstacles can cause this situation.
How deep should a leach field trench be?
A typical septic drainfield trench is 18 to 30 inches in depth, with a maximum soil cover over the disposal field of 36"; or per the USDA, 2 feet to 5 feet in depth.
How deep is the gravel in a leach field?
How Deep Should a Leach Field Be? Generally, you'll want to have a leach field that is at least 3 or 4 feet in depth. It helps accommodate the gravel surrounding the pipes—12 inches underneath and 2 inches on top. Then you'll backfill the area with soil to even everything out.
How deep are most septic lines buried?
On average, trenches should be around 12-24 inches-deep, and wide enough to house your pipe comfortably before filling it in with soil and sod.
how deep should you install a drain field
Can you put gravel over leach lines?
You Can't Install Semipermanent Playground Equipment
Sand, gravel, and other playground material also inhibits the proper function of the septic field, so even sandboxes can cause damage to the system.
Can you have a septic tank without a leach field?
Though you can not have a septic system without a leach field, you do have options when it comes to choosing the type of septic system installation. The following list is not all-inclusive, but does include the common types of septic systems: Conventional System. Chamber System.
How long should a leach line be?
Maximum length of each line 100 ft. Minimum spacing of lines, center-to-center = 10 ft. Minimum depth of natural earth over all lines as measured from the lowest point of natural grade 12 in. "Drop" in leach line (bottom of trench and chambers) shall be as level as possible - max.
What is the best stone for a leach field?
Gravel is the ideal choice for drain fields due to its ability to withstand large amounts to weight without being crushed allowing it to support the weight of the septic tank and the rest of the septic system's weight.
How big does a leach field need to be?
They can have multiple trenches between 18 to 36 inches deep, one to three feet wide and up to 100 feet long. There are typically six feet between each trench. If properly maintained, leach fields can last up to 25 years.
How do I calculate the size of my septic drain field?
Drainfield Size
- The size of the drainfield is based on the number of bedrooms and soil characteristics, and is given as square feet. ...
- For example, the minimum required for a three bedroom house with a mid range percolation rate of 25 minutes per inch is 750 square feet.
How do you dig a leach field?
- Locate your septic tank and uncover the distribution box. ...
- Decide where to dig your trenches. ...
- Clearly mark the trenches with spray paint. ...
- Dig the trenches. ...
- Lay straight perforated pipes in the trenches. ...
- Cover the trenches with a layer of straw. ...
- Plant grass over the top of the leach field.
How deep is a 1000 gallon septic tank?
A 1,000 gallon concrete septic tank is typically 4' 8" deep.
What can you plant over a septic drain field?
Plant grass or keep existing native vegetation. These are the best covers for your drainfield. Direct all surface drainage away from the septic system. Use shallow-rooted plants (see plant list above).
How many bathrooms can a 1000 gallon septic tank support?
Most governmental recommendations for the smallest septic tank capacity in home use is based on the number of bedrooms in the house. The recommendation for home use is a 1000 gallon septic tank as a starting point. The 1000 gallon size tank is a minimum and *can be suitable for a 2 bedroom, 3 bedroom house.
Can a leach field be on a slope?
1. The maximum slope allowed for leach line trenches is 40% (2-1/2:1 slope). 2. All leach lines on steep slopes shall be installed in five-foot deep trenches with 12 inches of leach rock below the leach pipe or with approved chambers or other gravel-less system.
How do you unclog a leach field?
If you suspect one of the leach field pipes has a clog, the easiest way to clean it is with a pressurized sewer jetter. If the clog doesn't clear with a jetter, there may be tree roots that you can cut with a mechanical auger.
What kind of pipe do you use for a leach field?
Leach pipes are usually made of perforated PVC pipe. To encourage the final product to trickle into the soil, the pipes are bedded in gravel and sand or sometimes are covered with plastic septic chambers.
Can I drain GREY water on the ground?
Bureau of Land Management
Generally, as long as your gray tank contains water that was used for washing, it's legal to dump it on the ground.
What is the smallest septic tank you can buy?
If you're looking to install a septic system, the smallest tank size you're likely to find is 750-gallon, which will accommodate one to two bedrooms. You can also opt for a 1,000-gallon system, which will handle two to four bedrooms.
Does shower water go into septic tank?
Water from your kitchen, bathroom etc runs through one main drainage pipe leading to your septic tank. Underground the septic tank starts the process of holding the waste water. It needs to hold this long enough so the solids settle down to the bottom, while oil and grease floats to the top.
What is the best soil for a septic system?
The soils best suited for wastewater treatment are mixtures of sand, silt, and clays referred to as loamy soils. The architecture of the soil is also important in estimating its permeability. The soil particles stick together to form structural units.
What is an alternative to a septic system?
Aerobic Treatment Systems (ATS)
Aerobic systems are basically a small scale sewage treatment system. It's similar to the septic tank system but uses an aerobic (more air and oxygen) process. These systems are generally found in rural areas and can be used for a single residence or for a small group of homes.
