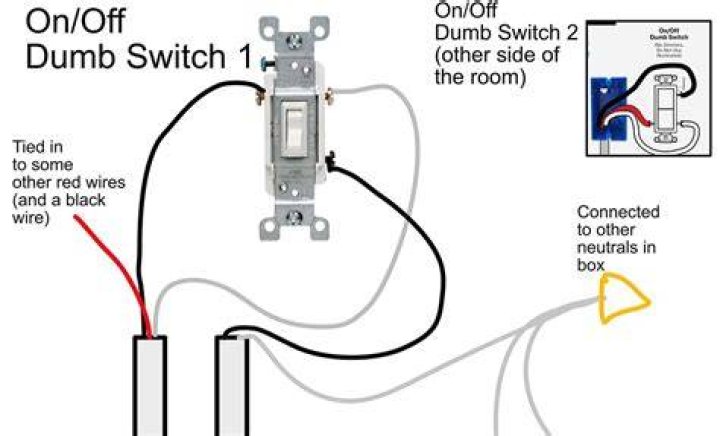

Does it matter which wire goes where on a light switch?

In the case of a single-pole switch, these wires are interchangeable—it doesn't make any difference which wire is attached to which screw terminal. Inside the switch is a metal pathway that closes when the switch is in the ON position and opens to interrupt the flow of power when the switch is turned OFF.

Should a light switch be on the black or white wire?

The white wire to the switch should be marked black to indicate that it is hot. (Ground wires are not shown.) If the line carrying power comes into the light box first, the circuit must still be wired so the switch interrupts the black line. The white wire from the service panel is wired to one side of the light.

Does it matter which wire goes to black and white?

Here's a rundown of electrical wires: The black wire is the "hot" wire, it carries the electricity from the breaker panel into the switch or light source. The white wire is the "neutral" wire, it takes any unused electricity and current and sends it back to the breaker panel.

Where do the red and black wires go on a light switch?

It doesn't matter which traveler wire (red or black) connects to which traveler terminal as long as it's the same in both switch boxes. For example, if the red traveler wire is on the top traveler terminal in the first box, it should also be on the top traveler terminal in the second box.

Why is there a white wire connected to the light switch?

What happens if you wire a light switch wrong?

But here's the catch: If you connect the circuit wires to the wrong terminals on an outlet, the outlet will still work, but the polarity will be backward. When this happens, a lamp, for example, will have its bulb socket sleeve energized rather than the little tab inside the socket.

What happens if black and white wires are reversed?

So, what happens with reversed polarity? In reversed polarity, both the hot wire and neutral wire get switched, causing the electric current to flow backward, entering the appliance through the neutral terminal instead of the hot terminal, which energizes the appliance even when off.

Which wire is positive when both are black?

If the multi-colored wire is black and red, the black wire is the negative wire, while the red one is positive. If both wires are black but one has a white stripe, the striped wire is negative, while the plain black wire is positive. Look in the owner manual to determine which wires are negative in a car.

Does black wire go on top or bottom of switch?

Hook the black wire to the bottom terminal on the switch. Hook the white wire to the top terminal on the switch. Push the switch into the box and secure it with screws at the top and bottom. Turn on the power and test the switch.

Which color wire goes to the switch?

Black wires are hot wires that run to the electrical outlet from the switch. Red wires are hot wires common in a 240-volt outlet or when a wall switch controls the outlet. Blue and yellow wires are hot wires for ceiling fans and three- or four-way switches. White or gray electrical wires are neutral wires.

Which wire goes through a switch?

the neutral wire goes through the switchC. the earth wire goes through the switchD.

Does positive and negative matter on a light switch?

The circuit works the same no matter where you put the switch. Part of the electrical code (for house wiring) says that the switch should always go between the hot conductor and the load. This is for safety.

When wiring a light switch what Colour is the live wire?

The brown wire is Live (also know as permanent live), this brings the live supply to the switch. The blue wire is known as the Switched Live and takes power to the light.

Which wire is hot when both are same color?

In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means. In some cases, there will be small writing on the wiring case.

Does it matter which wire goes where on a 3 way light switch?

It makes no difference which traveler wire goes to which traveler terminal on the switch; the traveler terminals are interchangeable. Note that the terminal wires also are considered "hot" because they carry power when the switches are on.

What happens if you mix up hot and neutral wires?

This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it's usually an easy repair. Any $5 electrical tester will alert you to this condition, assuming you have a properly grounded three-prong outlet.

Why are there 2 black wires on light switch?

Black means hot, white signifies neutral, and green indicates ground. However, if you need to rewire a light switch or a plug socket, you may occasionally come across two black wires. It's essential that you determine which black wire is hot before proceeding.

What happens if I switch neutral and hot are reversed?

One common issue with electrical outlets is reverse polarity, also known as "hot-neutral reversed." In this condition, the outlet has been wired incorrectly, altering the flow of electricity. While the outlet will still be able to provide power to your electrical items, it is also present a greater shock hazard.

Can wiring a light switch wrong cause a fire?

Usually, a broken or failing light switch isn't a fire hazard itself, but it can overheat if the contacts or the switch wear down. Sometimes a bad light switch can cause other components on the circuit, such as a bulb, to become a fire hazard by causing an intermittent current.

What happens if you wire live and neutral wrong in a light?

There would be a shock hazard, and some devices might not work correctly. Depending on where exactly the wires are flipped, ground fault detecting circuit breakers may become ineffective. All around, this is a bad idea.

Do red and black wires go together?

These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.

How do you connect black and white wires?

Hooking up a switch is the essence of simplicity. You connect the black wires in the electrical box to the switch terminals, and the white wires to each other. The switch also has a green terminal for the ground wires, which usually are bare.
