Does a retaining wall need a footing?
Sarah Scott Does a retaining wall need a foundation?
The foundation of a retaining wall is a key component in the wall's longevity. A good foundation ensures the wall does not sag or settle. It will ensure the finished wall is level and straight.
What kind of base do you need for a retaining wall?
The base material should only consist of angular, sharp-edged particles such as ¾-inch minus gravel. The various-sized crushed gravel with the fines helps ensure the right amount of compaction. Round rocks, such as pea gravel, roll and dislodge under pressure resulting in failure of the retaining wall.
How thick should a footing be for a retaining wall?

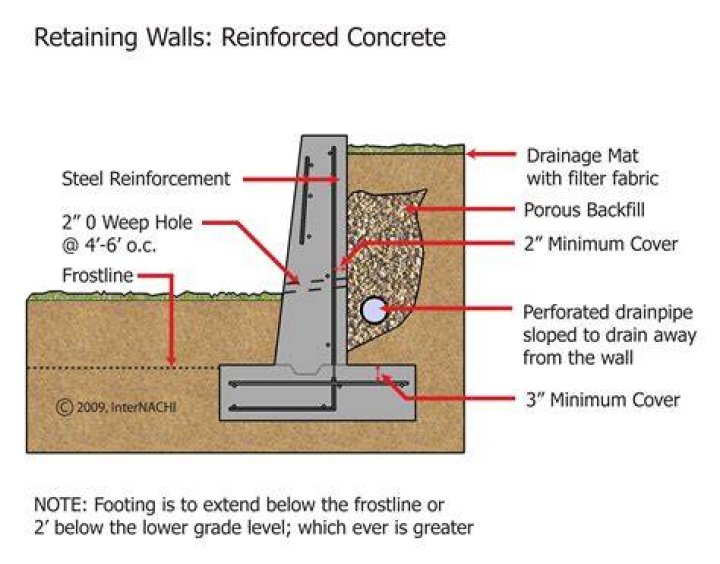

A typical cantilever reinforced masonry (or concrete) retaining wall will utilize a footing with a thickness of at least 12 inches.
Can you build a retaining wall without concrete?
Retaining walls can be made from wood, bricks, natural stones or concrete blocks. For DIYers, it's best to use concrete retaining wall blocks, which can be interlocking and are heavy enough to stay in place without cement or other adhesive.
How to prepare a footing for a Retaining Wall | Adbri Masonry
Does my small retaining wall need drainage?
Every retaining wall should include drainage stone behind the wall. Though it is a good idea to install a drainage pipe on all walls, there are certain situations where a perforated drain pipe is absolutely necessary.
Do retaining walls need a concrete footing?
Every retaining wall needs a footing, but what type depends on the design, material, height and weight of the wall. Large masonry retaining walls built out of rigid materials like concrete, cinder blocks, cement or brick need a concrete footing. Solid masonry walls are stiff and unable to flex because they'll crack.
How deep should footings be for a small retaining wall?
Retaining wall foundation depth should be 300mm if the soil is firm and well-drained, or 450mm if less firm and unstable.
Does a retaining wall need Piers?
Important points about retaining walls
Don't forget to include movement joints in the wall and use piers on either side to increase strength at the movement joint position. If you're using two separate brick skins in stretcher bond, you have to provide reinforcement by tying them together.
Do you put sand under retaining wall?
Compact the material making sure that it is compacted enough for you to walk over the area where there is no shift at all. When the base material is compacted it is also recommended to spread a 1 layer of coarse sand. This will help the wall settle evenly.
What do you put behind a retaining wall?
Backfill refers to the dirt behind the wall. In order to provide proper drainage, at least 12 inches of granular backfill (gravel or a similar aggregate) should be installed directly behind the wall. Compacted native soil can be used to backfill the rest of the space behind the wall.
How do you build a retaining wall on a sloped yard?
Steps to Follow When Building a Retaining Wall on a Slope
- Step #1: Get the Trench Compact and Level. ...
- Step #2: Install the Wall Rock. ...
- Step #3: Excavate the Second Level. ...
- Step #4: Place the Base Course of Blocks. ...
- Step #5: Compact the Wall Rock Behind the Blocks. ...
- Step #6: Fill in the Step Up Areas.
Does a retaining wall footing need to be below frost line?
It's called frost heaving, and as the soil freezes and heaves upwards it breaks the wall apart. You need to make sure you dig down deep enough to rest the footing of the wall below the frost line (typically four or five feet, or 1.22 to 1.52 metres, deep).
Do retaining walls need rebar?
Retaining walls must be stronger than freestanding walls. Insert rebar in the footing when you pour it; this should be done at every three blocks or at intervals specified by your local codes.
Do stone walls need footings?
Every mortared stone wall needs a solid foundation. If you are lucky, you can build your stone wall on a ledge. If there is no ledge where your stone wall will be built, you will need to pour a concrete footing.
How much base material do I need for a retaining wall?
Multiply the length and width measurements to determine the square footage of the wall. Multiply this number by the square yardage of the gravel depth to determine the amount of base gravel needed for the retaining wall.
How much weight can a retaining wall hold?
Even small retaining walls have to contain enormous loads. A 4-foot-high, 15-foot-long wall could be holding back as much as 20 tons of saturated soil.
Do I need a French drain behind a retaining wall?
If you're building a retaining wall, add a French drain behind the first course of stones or blocks. Otherwise, water moving down the hill will build up behind the wall and undermine it. The pipe should rest on the same compacted gravel base or concrete footing that supports the wall.
What do you use for drainage behind a retaining wall?
Liners. Permeable liners or damp-proof membranes (DPM) are the best choice for our retaining walls.
How do you install a small retaining wall on an uneven slope?
How to Build a Retaining Wall on Uneven Ground
- Step 1: Install Stakes and Attach String. ...
- Step 2: Level the String. ...
- Step 3: Dig Retaining Wall Trench. ...
- Step 4: Tamp Soil and Add Gravel. ...
- Step 5: Add Sand and Wall Blocks. ...
- Step 6: Add Second Row of Blocks. ...
- Step 7: Pour Gravel and Spread Fabric.
