Can you have a negative drag force?

When drag is termed "positive", that means that it is exerting a force against the force of thrust. Negative drag means the opposite, that there is a reduction in the drag force. When drag is positive, we can assume the aircraft is slowing down. When drag is negative, we can assume it is accelerating.

Can induced drag be zero?

No, it is not possible to eliminate induced drag completely. Many parasite drag/induced drag graphs erroneously have induced drag approaching zero.

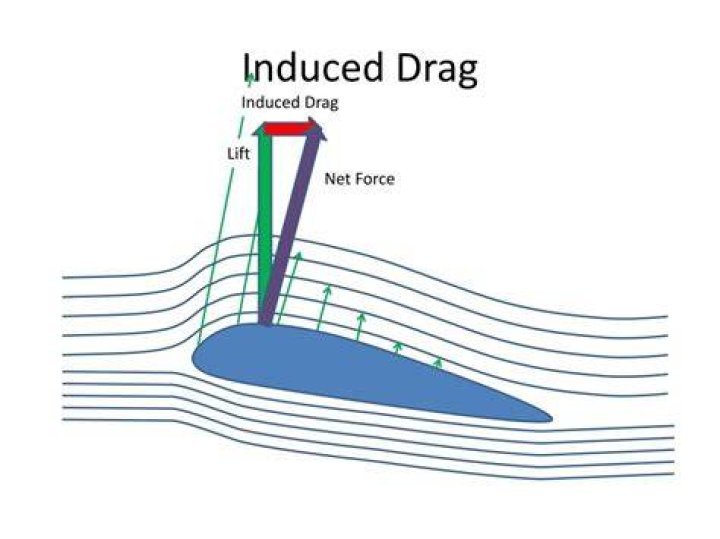

What is an example of induced drag?

Induced Drag is an inevitable consequence of lift and is produced by the passage of an aerofoil (e.g. wing or tailplane) through the air. Air flowing over the top of a wing tends to flow inwards because the decreased pressure over the top surface is less than the pressure outside the wing tip.

What is induced drag factor?

Induced Drag is an Aerodynamic Drag Force that occurs whenever a moving object redirects the airflow coming at it. Induced Drag Coefficient is Directly Proportional to the Lift Coefficient.

Understanding INDUCED DRAG.

How do you calculate induced drag?

The induced drag coefficient Cdi is equal to the square of the lift coefficient Cl divided by the quantity: pi(3.14159) times the aspect ratio AR times an efficiency factor e. The aspect ratio is the square of the span s divided by the wing area A.

How is induced drag reduced?

For a constant amount of lift, induced drag can be reduced by increasing airspeed. A counter-intuitive effect of this is that, up to a point, aircraft need less power to fly faster. Induced drag is also lesser when the aspect ratio of the wings is higher, or by using wingtip devices.

Why is induced drag bad?

Wake Turbulence. Aside from induced drag, wingtip vortices can create a safety hazard as well. As you fly through the air, the vortex you've generated creates a spiraling mass of air. If another aircraft were to fly through this spiraling air, they could encounter severe turbulence or worse.

What's the difference between parasitic drag and induced drag?

There are two basic types: parasite drag and induced drag. The first is called parasite because it in no way functions to aid flight, while the second, induced drag, is a result of an airfoil developing lift. Parasite drag is comprised of all the forces that work to slow an aircraft's movement.

Is induced drag the same as pressure drag?

"The three-dimensional flow simply alters the pressure distribution on the finite wingin such a fashion that a net pressure imbalance exists in the direction of V∞ (i.e., drag is created). In this sense, induced drag is a type of “pressure drag."

What is downwash and induced drag?

In aeronautics, downwash is the change in direction of air deflected by the aerodynamic action of an airfoil, wing, or helicopter rotor blade in motion, as part of the process of producing lift. In helicopter aerodynamics discussions, it may be referred to as induced flow.

Why does induced drag decrease with airspeed?

So at higher speeds where m is larger and v is smaller the kinetic energy lost in the wake is lower. Therefore induced drag decreases as speed increases. Similarly, increasing wing span increases m, reducing v, so wings with larger spans have lower induced drag at any given flight speed.

Does induced drag increase in ground effect?

Aerodynamic Theory - Fixed Wing

The increase in lift created by ground effect comes primarily from a reduction in the amount of induced drag generated which improves the lift/drag ratio.

Can lift and drag coefficients be negative?

Among various flow regimes observed, negative values of lift coefficient are found to occur only at low angles of attack, which corresponds to laminar separation without flow transition and without reattachment.

Can you have a negative lift?

Yes. Most airplanes have the centre of mass forward of the centre of lift of the main wing(s). This would make the airplane "tip over" forwards, so the tailplane is an upside-down wing, and provides negative lift sufficient to balance the airplane.

What does negative lift mean?

The air moving under the car moves faster than that above it, creating downforce or negative lift on the car. Airfoils or wings are also used in the front and rear of the car in an effort to generate more downforce.

What type of drag is induced?

Lift induced drag, as the name suggests, is a drag produced due to lift. At slower speed & higher angle of attack, aircraft will have more lift. But as the angle of attack increases, the air pushes the aircraft in the backward direction. This backward push is the induced drag.

Is induced drag equal to profile drag?

The total drag acting on an aircraft in flight is the sum of: Profile drag. Induced drag.

Does induced drag increases with airspeed?

Parasitic drag increases with the square of the airspeed, while induced drag, being a function of lift, is greatest when maximum lift is being developed, usually at low speeds. The diagram below shows the relationship of parasitic drag and induced drag to each other and to total drag.

Do cars have induced drag?

Induced drag is a by-product of lift or downforce. Lift or downforce occur only because there is a pressure differential. For example, a higher pressure on the underside of a car than the top surfaces will cause lift. A wing with a higher pressure on the upper surface than the lower surface will develop downforce.

Which phenomenon eliminates the effect of induced drag?

Induced drag is, therefore, reduced when an airplane is flown very near the ground. This phenomenon is known as ground effect.

Why does induced drag decrease with aspect ratio?

Advantages Of High Aspect Ratio Wings

High aspect ratio wings have one major advantage: because the wingtip has less area, there is less vortex induced downwash, which means a lot less induced drag.

Do flaps increase induced drag?

Flaps increase the drag coefficient of an aircraft due to higher induced drag caused by the distorted spanwise lift distribution on the wing with flaps extended. Some flaps increase the wing area and, for any given speed, this also increases the parasitic drag component of total drag.

Which wing has low induced drag?

For a rectangular wing this reduces to the ratio of the span to the chord. Long, slender, high aspect ratio wings have lower induced drag than short, thick, low aspect ratio wings. (Induced drag is a three dimensional effect related to the wing tips.
