Is a guitar cable balanced or unbalanced?

As an example, guitar cables are unbalanced and most microphone cables are balanced. Both are analog. You might be wondering why guitars use unbalanced cables if they are so susceptible to interference.

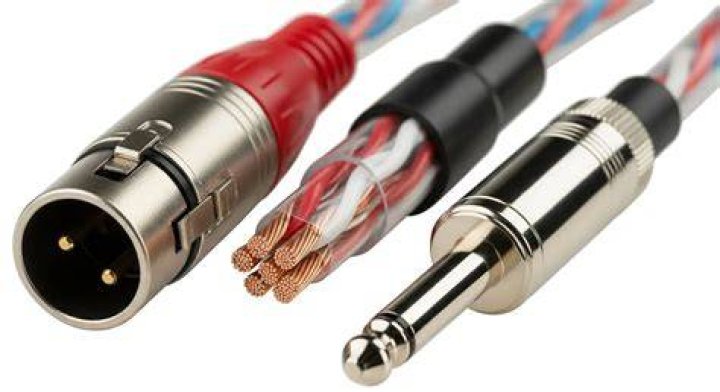

Why do guitars not use balanced cables?

Regarding hum: balanced cables are only immune to the noise introduced between the output and the destination. Most of the hum you're hearing in an amp comes from either the guitar's pickups or interference affecting the amp itself. Also, every piece of guitar gear ever made has high impedance unbalanced inputs.

Can you use a balanced cable in an unbalanced input?

It's important to note that using a balanced cable on an unbalanced signal gives you no benefits. The jacks on the gear on both ends of the cable must be designed for balanced signals as well; otherwise there's no circuitry to do the polarity inversion that produces the noise cancellation.

What type of cable is used for guitars?

The 6.3mm (or 1/4" as it's commonly referred to) mono connector is commonly used for connecting a guitar to an amplifier. Since a guitar, from an audio point of view, really has no sense of left-to-right difference, only two wires are needed, so this mono or "tip-sleeve" connector is fine for the job.

Why don't guitarists use XLR audio balanced cables?

Do guitar cables work for all guitars?

All electric instruments—guitars, basses, and keyboards—use the same basic quarter-inch jack cable to run signals from instruments, through effects units, and into amplifiers.

Are guitar cables different?

The design of a guitar cable is usually very similar. Some manufacturers and brands add their own flavor and new technology, but generally speaking, there are five parts to a cable: The Center Conductor – This is tasked with carrying the audio signal once it has been converted to an electrical signal.

Can 3.5 mm be balanced?

If the headphone cable comes with a standard 3-pole TRS stereo connector, it must be unbalanced, regardless if it is a larger 6.35 (¼”) or smaller 3.5mm (⅛”) connector. A 3-pole connection means the grounds are tied together and will not work with a balanced output.

Are guitar cables TS or TRS?

The letters TRS stand for Tip, Ring, and Sleeve, and refer to the parts of the jack plug that the different conductors are connected to. A TRS cable has three conductors vs the two on a standard guitar cable. A guitar cable is a TS, or Tip Sleeve cable. The jack plug at the top is a TS jack.

Does balanced sound better than unbalanced?

In general, balanced audio will give you a better, stronger audio signal without any extraneous noises. Unbalanced audio, on the other hand, is susceptible to picking up noise and interference over longer distances.

Can I plug guitar directly into mixer?

Can't I just plug my acoustic guitar directly into the mixer's channel? Technically you can do this, but even with an onboard preamp, this would be an unbalanced signal. It's better to send a balanced signal through XLR, which means we'd at least recommend a basic DI box.

Can I use TS cable instead of TRS?

TS cables are generally used for mono, unbalanced signals. These are most commonly used with electric guitars. TRS cables can be used for mono, balanced signals as well as stereo signals. An example of a mono, balanced signal would be the line in or out from your audio interface.

Can I plug a guitar into an XLR input?

Assuming you don't have some kind of Franken-cable running from ¼" jack to male XLR, then you'd have to go via a DI [Direct Injection] box, if only because the plugs won't fit otherwise. If you do have a Franken-cable, throw it away.

Are guitar pedals balanced?

A guitar, bass guitar, pedal or amplifier have always operated on an unbalanced signal. When distances are a problem, then a buffer is preferred. Only when miking an amplifier /cabinet or when the guitar signal is sent via line-out on the mixer are balanced cables necessary.

Can you use stereo cable for guitar?

Stereo cables can be used for guitar, but guitars and guitar gear are not made to make use of the balanced signal capabilities of these cables. This means that using a stereo cable will make no real difference when used for guitar.

Are all TRS cables balanced?

A TRS cable can carry either a balanced audio signal or a stereo audio signal. It depends on what audio output you connect the cable to. People often ask, "Are the TRS cables balanced?" The answer is "They can be, if you connect the cable between a balanced TRS output and balanced TRS input."

Is a balanced cable the same as a stereo cable?

A stereo, unbalanced signal requires a TRS plug - tip is left, ring is right, sleeve is audio ground for the left and the right signals. A stereo, balanced signal requires a plug with FIVE connection points, not three like a TRS plug.

Can you convert 3.5 mm to 2.5 mm balanced?

3.5mm M to 2.5mm F adapter lets you use 2.5mm Balanced earphones with 3.5mm stereo (unbalanced) output devices. Easy to use, just plug and go. Connector Plug Provides Great Clear Audio Quality. For simple connectivity.

Can you convert single-ended to balanced?

As Drew mentioned previously in his article, you cannot convert a single-ended connection to a balanced connection as there is no way to untie these grounds. PLEASE do not risk damaging your gear by doing this.

Is balanced better than single-ended?

The Balanced option will offer more power and control of the headphones in comparison to the single-ended output. A true Balanced amplifier will be balanced from input all the way through to the output. Opamp splitters are often used to convert the input and output from single ended to balanced.

Do cables affect guitar tone?

The electrical resistance of a guitar cable is insignificantly tiny compared with the impedance of the pickups and controls, so that won't affect your tone a great deal, but cable capacitance is another matter altogether.

Does wiring affect guitar tone?

How you wire those pickups together has a huge impact on the tone and the reproduced sound of your guitar. Everything in your wiring affects the tone of your final signal to your amp… the value of the pots, the value of the caps, how the signal is routed through the wiring, the way that your guitar is switched.

Are 1/4 cables balanced?

Balanced cables can also be 1/4" as well. They are often refereed to as TRS or tip, ring, sleeve. In the image below, all the cables on the left are balanced.

Are all guitar cables equal?

A guitar cable is basically the same as a standard 1/4 inch line level cable. The connectors can be the same and the cable can be the same. For all practical purposes they can be used interchangeably.
