What could causes low voltage in a circuit?

Old wires and corrosion are two of the common causes of low voltage. Another reason can be dirty connections and weak insulation. Apart from that, if the population increases the demand increases and this leaves an impact on the distribution of voltage.

How do you know if a circuit breaker is weak?

Key Indicators to Tell if You Have a Bad Circuit Breaker

1. Breaker Doesn't Stay in “Reset” Mode. It is possible the breaker is short-circuiting, but call an electrical professional to check it out. ...
2. Burning smell. ...
3. Hot to the touch. ...
4. Visible damage to the box or outlets. ...
5. Breaker trips frequently. ...
6. Old Age.

What can cause low voltage in a house?

Low voltage due to overloading on the network, loose connections, or too small a conductor wire carrying power to your house may cause dimming of your lights. In extreme cases, a loose connection can cause electric shocks from metal appliances and surfaces in your home.

What would cause voltage to decrease?

Causes of Voltage Drop

Excessive dropping is due to increased resistance in a circuit, typically caused by an increased load, or energy used to power electric lights, in the form of extra connections, components, or high-resistance conductors.

How to fix low voltage on one or more of your outlets.

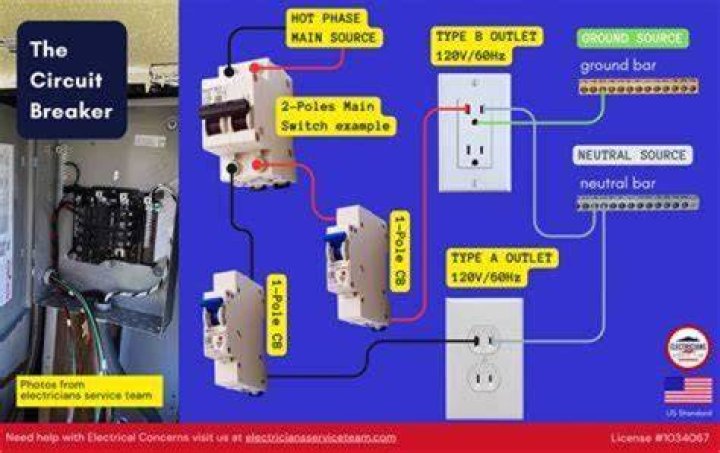

Do circuit breakers cause voltage drop?

Yes, a bad breaker can cause low voltage somewhere in your home. Like I said before, this is rarely the case, but it is possible. If the breaker isn't making a solid connection to the panel box or one of the buses in the breaker gets blown, it can result in low voltage.

How do you fix low voltage problems?

Answer provided by

1. See if the issue only happens when a certain appliance is on. Some high-draw appliances can cause temporary low voltage. ...
2. Check your circuit breaker. ...
3. Make sure the issue isn't with your appliance. ...
4. Use a multimeter to look for readings below 120.

What happens if voltage is too low?

If the voltage is too low, the amperage increases, which may result in the components melting down or causing the appliance to malfunction.

How can I improve low voltage in my house?

To increase the voltage in your home you could use a transformer. Would be large to handle the current, 100 or 200 Amp service. And be costly and should be performed by a licensed electrician. The transformer would be near a 1:1 with taps to allow selecting the voltage output in small steps.

What causes undervoltage?

Undervoltage conditions are usually be caused by undersized or overloaded utility and facility transformers. During peak demand periods and/or when the utility is experiencing problems, the demand for power exceeds the capability of the transformer and as a result the voltage drops.

How do you know if a circuit breaker needs to be replaced?

You will need to replace a circuit breaker if it is hot to touch, has a burning smell or you can see visual damage such as black or burned material or frayed wires. Quality circuit breakers should last a long time. The circuit breaker device doesn't necessarily cause every electrical problem or short circuit.

What is the life expectancy of a circuit breaker?

Life expectancy for molded case circuit breakers in the industry is generally expected to be about 30 years, given favorable environment and regular maintenance. Required maintenance, especially for older breakers, includes annual exercising—OFF, ON, TRIP, RESET, ON.

Can a broken wire cause low voltage?

Low-voltage issues can often be found and repaired by simply looking for the obvious: poor connections, damaged cables from animals or lawn equipment, and rub-outs inside the equipment or where wires run into the cabinet.

Why do I only have 80 volts at outlet?

Check voltage across each conductors. If you read 80V between the hot and neutral, and read 120V between the hot and ground. You have a malfunctioning neutral. If you read 80V between hot and both the neutral and ground your problem is with the hot conductor.

How can I make my voltage higher?

To increase the voltage, we connect the AC voltages in series to get a higher output voltage. If the frequency of all the voltages are the same, the magnitude of the voltages simply add. The voltages will just add, so the total voltage will be 28Vac at 60Hz.

How can I tell if my house has low voltage?

Set a multimeter to measure voltage. Insert a probe into each slot and read the line voltage measurement. A properly working outlet gives a reading of 110 to 120 volts. If there is no reading, check the wiring and the outlet.

Which of the following may cause an unintentional voltage drop?

Unintentional resistance may result from improperly sized conductors. Resistance creates a voltage drop that causes voltage and current to alternate out of phase. Capacitive reactance does not produce resistance to the flow of alternating current.

Why does voltage drop when current increases?

Increasing the current causes a higher voltage drop across the internal resistance which reduces the source voltage. Some resistances increase their resistance when the current is increased caused by heating.

Can a bad switch cause low voltage?

Unfortunately, there are a few different reasons you might experience low voltage at an outlet. But identifying and correcting the problem is important for safety. Things like a switch malfunction or poor insulation can cause a voltage drop and are cause for concern.

How many times can a breaker trip before it should be replaced?

An electrician is coming to replace the cutoff (containing fuses) with a simple lever cutoff. In discussing this he said that a circuit breaker should not be allowed to trip more than 4 or 5 times before being replaced.

Can a circuit breaker fail without tripping?

A circuit breaker can fail without tripping and is an indication it needs to be replaced. It can also mean there are wiring issues with the circuit itself, such as exposed/loose wiring, overheating, and unregulated voltage.

Can electrical breakers go bad?

So to answer the question simply, yes, circuit breakers do go bad, the way any other essential home device can cease to work the way that it should. This being said, a faulty circuit breaker does not necessarily mean that it has to be replaced.
